Slide Gate Circular

Unleash the potential of our Slide Gate Circular, the epitome of cutting-edge engineering in material flow control, designed to meet the highest expectations of performance and precision. As a manufacturer and supplier with over 45 astounding years of experience, we bring you the most reliable and efficient solutions for industrial applications. Our range includes the Manual Slide Gate Valve Circular, the Motorized Slide Gate Valve Circular, the Pin MLPB Based Slide Gate Valve Circular, and the Pneumatic Slide Gate Valve Circular, all of which are crafted to deliver remarkable functionality and durability. With phenomenal features like smooth operation, exceptional sealing, robust construction, minimal maintenance, and highly customizable options, these valves outshine any alternative offerings in the market. Be it manual or automated, our Slide Gate Circular range ensures unparalleled control over flow management, making it a hot deal for industries demanding dependable mechanisms. Additionally, our supply ability covers the entire domestic market of India, ensuring you get superior-quality products delivered right to your doorstep. Let us redefine operational excellence with our Slide Gate Circular solutions that lead the industry in both innovation and value.

Manual Slide Gate Valve Circular

MOQ : 1 Unit

  • Connection
  • Other, Flanged / Welded
  • Material
  • Other , Mild Steel / Stainless Steel
  • Media
  • Other, Dry Material, Powder, Granules
  • Port Size
  • Customizable (Standard sizes available)
  • Power Source
  • Other, Manual
  • Pressure
  • Other, Atmospheric / Low Pressure
  • Sealing
  • EPDM / Neoprene Gasket
  • Shape
  • Circular
  • Size
  • 100 mm to 1000 mm (Custom sizes on request)
  • Structure
  • Other, Single Plate Sliding
  • Surface
  • Powder Coated / Painted
  • Type
  • Other, Slide Gate Valve
  • Working Temperature
  • Other, Up to 250C

Motorized Slide Gate Valve Circular

MOQ : 1 Unit

  • Connection
  • Other, Flanged / Round Flange / Customized
  • Material
  • Other , Mild Steel / Stainless Steel
  • Media
  • Other, Powder, Granules, Ash, Cement, Grain, Coal, Dust
  • Port Size
  • 100 mm to 1000 mm
  • Power Source
  • Other, Electric Motorized
  • Pressure
  • Other, Up to 6 Bar
  • Sealing
  • EPDM / PTFE / Metal to Metal
  • Shape
  • Circular
  • Size
  • Customized
  • Structure
  • Other, Single Plate Slide
  • Surface
  • Polished, Painted
  • Type
  • Other, Motorized Slide Gate Valve
  • Voltage
  • 220V/380V/415V AC
  • Working Temperature
  • Other, -10C to 180C

Pin MLPB Based Slide Gate Valve Circular

MOQ : 1 Unit

  • Connection
  • Other, Flanged / Welded
  • Material
  • Other , High Grade Cast Steel / Stainless Steel
  • Media
  • Other, Powder, Granular material
  • Port Size
  • DN 150-800 mm
  • Power Source
  • Other, Manual, Pneumatic, or Electric Actuator
  • Pressure
  • Other, Up to 10 Bar
  • Sealing
  • High-temperature Ceramic Sealing
  • Shape
  • Circular
  • Size
  • Customizable
  • Structure
  • Other, Pin MLPB Actuation, Slide Mechanism
  • Surface
  • Corrosion Resistant Coating
  • Type
  • Other, Pin MLPB Based Slide Gate Valve
  • Voltage
  • 24V/110V/220V (for actuator type)
  • Working Temperature
  • Other, Up to 1600C

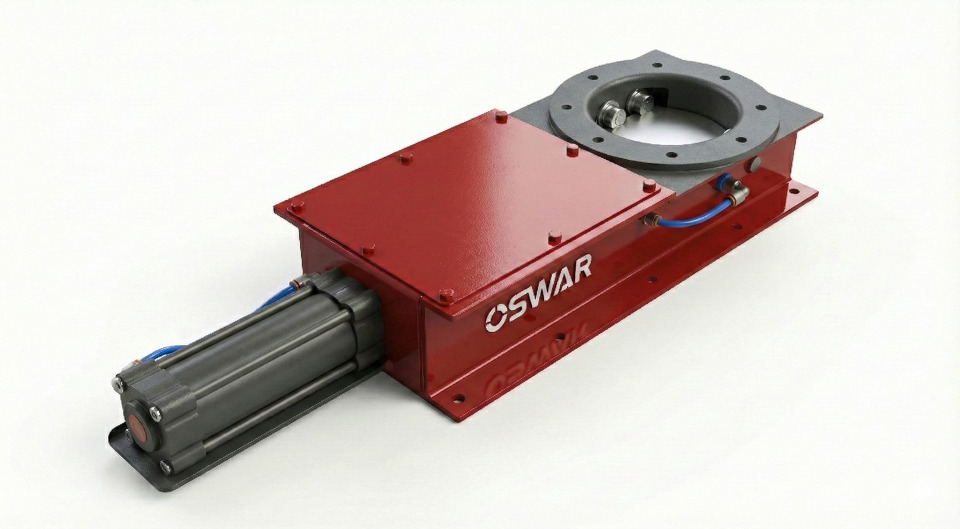

Pneumatic Slide Gate Valve Circular

MOQ : 1 Unit

  • Connection
  • Other, Flanged / Wafer
  • Material
  • Other , Mild Steel / Stainless Steel
  • Media
  • Other, Powder, Granules, Bulk Solids
  • Port Size
  • 100 mm to 500 mm
  • Power Source
  • Pneumatic
  • Pressure
  • Other, Up to 6 Bar
  • Sealing
  • Nitrile / EPDM / PTFE
  • Shape
  • Circular
  • Size
  • Customizable
  • Structure
  • Other, Single Plate
  • Surface
  • Polished
  • Type
  • Other, Slide Gate Valve
  • Voltage
  • 24V / 110V / 220V (for solenoid)
  • Working Temperature
  • Other, -10C to 180C
