Rotary Valve Square

Introducing our high-performance Rotary Valve Square, a marvelously engineered solution tailored for industrial applications requiring precision and reliability. With over 45 years of unmatched expertise, we proudly offer an astounding range of sizes, including 100mm, 150mm, 200mm, 300mm, and 350mm Rotary Valve Squares, ensuring a deal that perfectly matches your operational needs. These valves are designed for All India supply, providing instant savings through their energy-efficient performance and durable construction. Our Rotary Valve Square features top-notch material quality, an unbreakable seal for zero leakage, remarkable wear resistance for extended service life, efficient airflow management for superior performance, and easy maintenance for reduced downtime. When compared to other options in the market, our Rotary Valve Square stands out with its unmatchable dependability and cost-effectiveness. Whether you need them for heavy-duty or light-duty industrial applications, every unit ensures the best operational value, making it a special choice for businesses seeking top-tier quality and consistent results. Experience the ultimate in industrial efficiency and partner with a brand trusted for decades in the domestic manufacturing domain. Choose the Rotary Valve Square for its astounding performance, tailored solutions, and reliability that redefines industry standards.

100mm Rotary Valve Square

MOQ : 1 Unit

  • Application
  • Material Handling, Pneumatic Conveying Systems
  • Connection
  • Other, Flanged Connection
  • Finish
  • Powder Coated
  • Flange
  • Square Flange
  • Material
  • Other, Mild Steel (MS)
  • Media
  • Other, Air, Powder, Granules
  • Port Size
  • 100 mm
  • Power
  • Other, Manual or Motorized
  • Sealing
  • High-Performance Rubber Seal
  • Size
  • 100 mm
  • Temperature of Media
  • Up to 120C
  • Voltage
  • 220-240V (for motorized models)

150mm Rotary Valve Square

MOQ : 1 Unit

  • Application
  • Industrial Dust Collection, Bulk Material Handling
  • Connection
  • Other, Flanged
  • Finish
  • Other, Paint Coated
  • Flange
  • Square Type, Drilled as per IS/ANSI/DIN Standards
  • Material
  • Other, Mild Steel (MS)
  • Media
  • Other, Powder, Granules, Solid Particles
  • Port Size
  • 150 mm
  • Power
  • Other, Manual / Pneumatic / Electric
  • Sealing
  • Neoprene/Rubber Insert
  • Size
  • 150 mm
  • Temperature of Media
  • Up to 200C
  • Voltage
  • 230 V / 415 V (for Electric Motor Option)

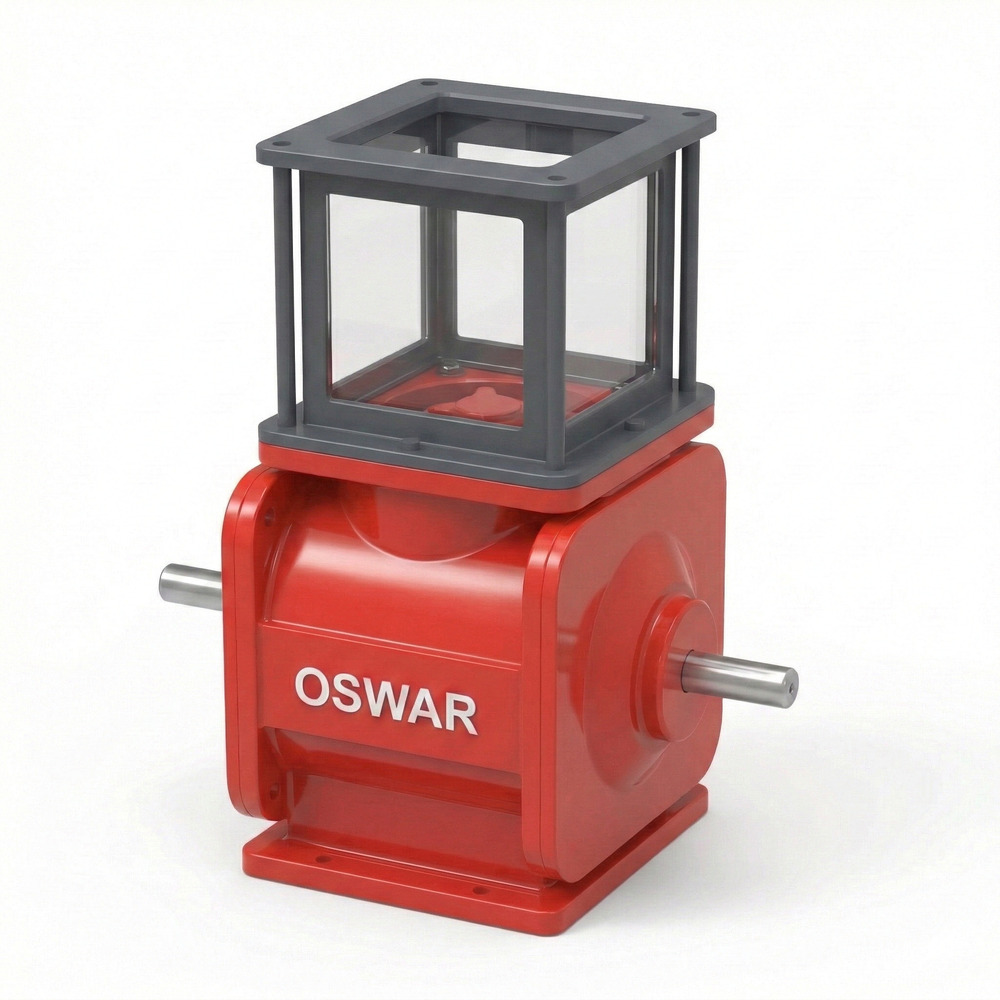

200mm Rotary Valve Square

MOQ : 1 Unit

  • Application
  • Dust collection, pneumatic conveying, feeding and discharging bulk material
  • Connection
  • Other, Flanged ends
  • Finish
  • Other, Corrosion-resistant paint
  • Flange
  • Drilled as per IS or ANSI standards
  • Material
  • Other, Mild Steel (MS), Stainless Steel (SS) available on request
  • Media
  • Other, Dry powders, Granular materials, Dust
  • Port Size
  • 200 mm x 200 mm (Square inlet & outlet)
  • Power
  • Other, 0.37 kW (0.5 HP) electric motor-driven
  • Sealing
  • Neoprene rubber blade seals
  • Size
  • 200 mm (Square)
  • Temperature of Media
  • Up to 120C
  • Voltage
  • 415V AC, 3 Phase

250mm Rotary Valve Square

MOQ : 1 Unit

  • Application
  • Dust Collection Systems, Industrial Conveying, Pneumatic Conveying
  • Connection
  • Other, Flanged
  • Finish
  • Other, Smooth Finish
  • Flange
  • Standard Square Flange
  • Material
  • Other, Cast Iron / Mild Steel
  • Media
  • Other, Powder / Granules
  • Port Size
  • 250mm x 250mm (Square)
  • Power
  • Other, 0.5 HP
  • Sealing
  • Neoprene Rubber Gasket
  • Size
  • 250mm
  • Temperature of Media
  • Up to 200C
  • Voltage
  • 220 V / 415 V AC

300mm Rotary Valve Square

MOQ : 1 Unit

  • Application
  • Dust Collection, Pneumatic Conveying, Bulk Material Handling
  • Connection
  • Other, Flanged
  • Finish
  • Other, Smooth Industrial Paint / Optional Epoxy Coating
  • Flange
  • Standard Square Flange (as per IS or ANSI)
  • Material
  • Other, Cast Iron / Mild Steel / Stainless Steel
  • Media
  • Other, Powder, Granules, Dust
  • Port Size
  • 300 mm x 300 mm
  • Power
  • Other, 0.75 to 2.2 kW (1 to 3 HP)
  • Sealing
  • Neoprene Rubber Gasket
  • Size
  • 300 mm
  • Temperature of Media
  • Up to 120C
  • Voltage
  • 415 V AC, Three Phase

350mm Rotary Valve Square

MOQ : 1 Unit

  • Application
  • Bulk material handling, pneumatic conveying, dust extraction systems
  • Connection
  • Other, Flanged
  • Finish
  • Other, Smooth Industrial Finish
  • Flange
  • Drilled as per DIN/ASA standard
  • Material
  • Other, Mild Steel / Stainless Steel
  • Media
  • Other, Powder, Granules, Dust
  • Port Size
  • 350mm x 350mm (Square)
  • Power
  • Other, 0.75 kW - 2.2 kW (as per design)
  • Sealing
  • Neoprene / Nitrile Rubber Gasket
  • Size
  • 350mm
  • Temperature of Media
  • Upto 200C
  • Voltage
  • 220V / 380V / 415V, 3-Phase

400mm Rotary Valve Square

MOQ : 1 Unit

  • Application
  • Dust Collection Systems, Pneumatic Conveying, Bulk Material Handling
  • Connection
  • Other, Flanged
  • Finish
  • Other, Smooth Surface
  • Flange
  • Drilled to DIN/ANSI Standards
  • Material
  • Other, Cast Iron / Mild Steel / Stainless Steel
  • Media
  • Other, Powder / Granules / Solid Particles
  • Port Size
  • 400 mm x 400 mm
  • Power
  • Other, 1 HP to 5 HP
  • Sealing
  • Flexible or Rigid Seals
  • Size
  • 400 mm
  • Temperature of Media
  • Up to 200C
  • Voltage
  • 220 V / 380 V / 415 V, 50 Hz

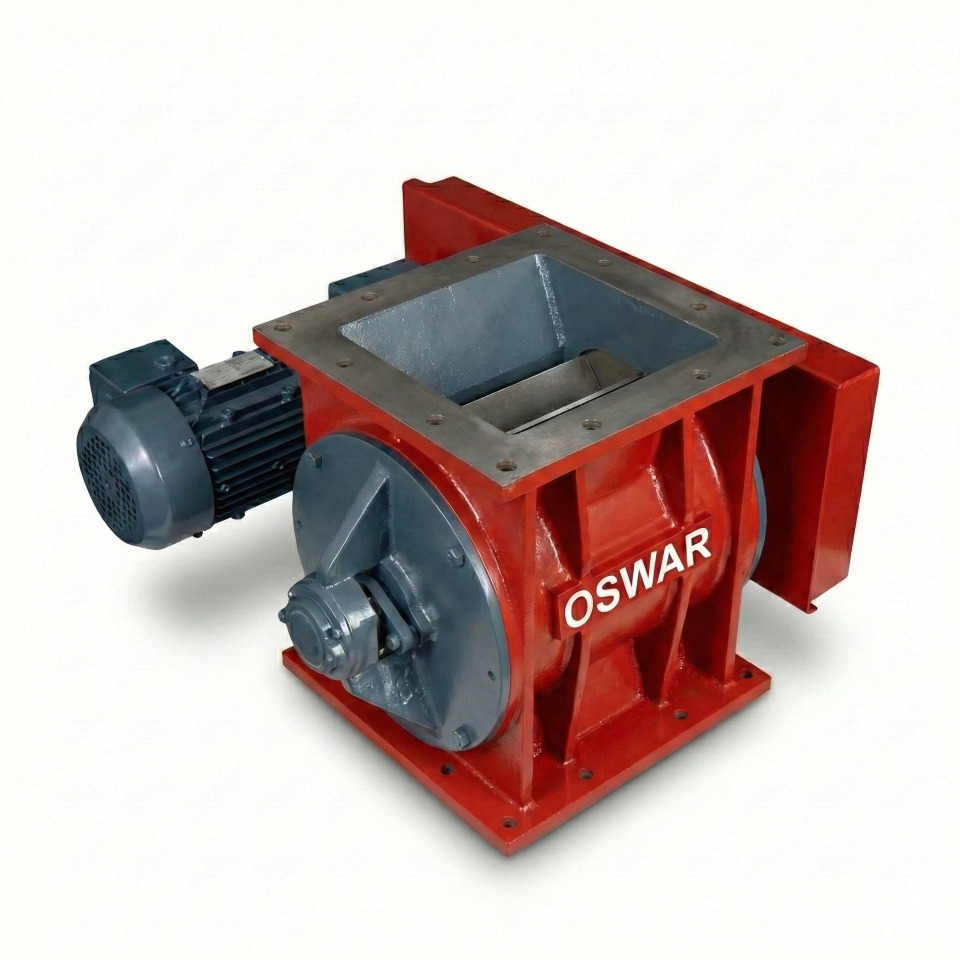

450mm Rotary Valve Square

MOQ : 1 Unit

  • Application
  • Discharge & Feeding of Solid Materials in Pneumatic Systems
  • Connection
  • Other, Flanged Ends
  • Finish
  • Other, Painted / Polished
  • Flange
  • Square Flanged
  • Material
  • Other, Cast Iron / Mild Steel / Stainless Steel
  • Media
  • Other, Powder / Granules / Dry Bulk
  • Port Size
  • 450mm x 450mm
  • Power
  • Other, 2 HP
  • Sealing
  • Standard / Air Tight
  • Size
  • 450mm
  • Temperature of Media
  • Up to 250C
  • Voltage
  • 415V AC, 50 Hz

500mm Rotary Valve Square

MOQ : 1 Unit

  • Application
  • Dust Collection, Material Discharge, Pneumatic Conveying
  • Connection
  • Other, Flanged Ends
  • Finish
  • Other, Smooth Surface
  • Flange
  • Drilled to standard PN10/ASME
  • Material
  • Other, Cast Iron / Mild Steel (MS) / Stainless Steel (SS)
  • Media
  • Other, Powder / Granules / Bulk Solids / Air
  • Port Size
  • 500 mm x 500 mm (Square)
  • Power
  • Other, 1.5 HP / 1.1 kW (standard)
  • Sealing
  • Nitrile Rubber / Neoprene Gasket
  • Size
  • 500 mm
  • Temperature of Media
  • Up to 250C
  • Voltage
  • 220-440 V, 3 Phase

550mm Rotary Valve Square

MOQ : 1 Unit

  • Application
  • Pneumatic Conveying Systems, Dust Collection Systems, Material Discharge
  • Connection
  • Other, Flanged
  • Finish
  • Other, Smooth / Anti-Corrosive
  • Flange
  • Square Flange
  • Material
  • Other, Mild Steel / Stainless Steel
  • Media
  • Other, Powder, Granules, Bulk Solids
  • Port Size
  • 550 mm square inlet/outlet
  • Power
  • Other, 2 HP - 5 HP (Depending on model)
  • Sealing
  • Neoprene or PTFE Gasket
  • Size
  • 550 mm
  • Temperature of Media
  • Up to 120C
  • Voltage
  • 415V AC, 3 Phase

600mm Rotary Valve Square

MOQ : 1 Unit

  • Application
  • Discharge and feeding of bulk material in pneumatic conveying and dust collection systems
  • Connection
  • Other, Flanged Ends
  • Finish
  • Other, Industrial Grade Painted / Coated
  • Flange
  • Square Flanged
  • Material
  • Other, Cast Iron/ Mild Steel/ Stainless Steel
  • Media
  • Other, Powder, Granules, Bulk solids
  • Port Size
  • 600 mm x 600 mm
  • Power
  • Other, 0.75 - 2.2 kW (depends on size and model)
  • Sealing
  • Nitrile Rubber / PTFE / Customized
  • Size
  • 600 mm
  • Temperature of Media
  • -10C to +80C (special sealing for higher temperatures available)
  • Voltage
  • 380V / 415V, 3 Phase (customizable)

650mm Rotary Valve Square

MOQ : 1 Unit

  • Application
  • Bulk Material Handling, Dust Collection Systems, Pneumatic Conveying
  • Connection
  • Other, Flanged
  • Finish
  • Other, Smooth Surface Finish
  • Flange
  • Square Flanged Ends
  • Material
  • Other, Cast Iron / Mild Steel
  • Media
  • Other, Air, Powder, Granules
  • Port Size
  • 650mm x 650mm
  • Power
  • Other, Electric Motor Driven
  • Sealing
  • Neoprene Gasket, Adjustable Packing
  • Size
  • 650mm
  • Temperature of Media
  • -10C to +120C
  • Voltage
  • 415V AC, 3 Phase, 50 Hz

700mm Rotary Valve Square

MOQ : 1 Unit

  • Application
  • Material handling, Dust collection, Pneumatic conveying, Feeders, Discharge of hoppers and silos
  • Connection
  • Other, Flanged, Square inlet and outlet
  • Finish
  • Other, Powder coated / Painted / Shot blasted / Polished
  • Flange
  • Square flange, drilled as per standard or custom requirements
  • Material
  • Other, Mild Steel / Cast Iron / Stainless Steel
  • Media
  • Other, Powder, Granules, Pelletized material, Dust
  • Port Size
  • 700 mm x 700 mm
  • Power
  • Other, 0.75 kW to 5.5 kW (Depending on model and application)
  • Sealing
  • Rubber, Polyurethane, or custom sealing available
  • Size
  • 700 mm (nominal square)
  • Temperature of Media
  • up to 250C
  • Voltage
  • 380V / 415V, 3 Phase, 50 Hz

750mm Rotary Valve Square

MOQ : 1 Unit

  • Application
  • Bulk Material Handling, Cement, Food, Chemical, Pharmaceutical, Fertilizer Industries
  • Connection
  • Other, Flanged
  • Finish
  • Other, Smooth Surface/Painted
  • Flange
  • Drilled to standard/Bespoke on request
  • Material
  • Other, Mild Steel / Cast Iron
  • Media
  • Other, Powder, Granules, Solid Bulk Material
  • Port Size
  • 750 mm 750 mm
  • Power
  • Other, 3 to 15 HP (depending on application)
  • Sealing
  • Rubber / Neoprene / PTFE Gasket
  • Size
  • 750 mm Square
  • Temperature of Media
  • Up to 250C
  • Voltage
  • 415V AC, 3 Phase

800mm Rotary Valve Square

MOQ : 1 Unit

  • Application
  • Feeding, Metering, Discharge of Powders
  • Connection
  • Other, Flanged End Connection
  • Finish
  • Other, Painted / Coated
  • Flange
  • Square Flange
  • Material
  • Other, Mild Steel (MS)
  • Media
  • Other, Powder / Granules / Bulk Solids
  • Port Size
  • 800 mm x 800 mm
  • Power
  • Other, Electric Motor Driven
  • Sealing
  • Precision Machined Rotor with End Seals
  • Size
  • 800 mm
  • Temperature of Media
  • Up to 100C
  • Voltage
  • 415 V (3 Phase)

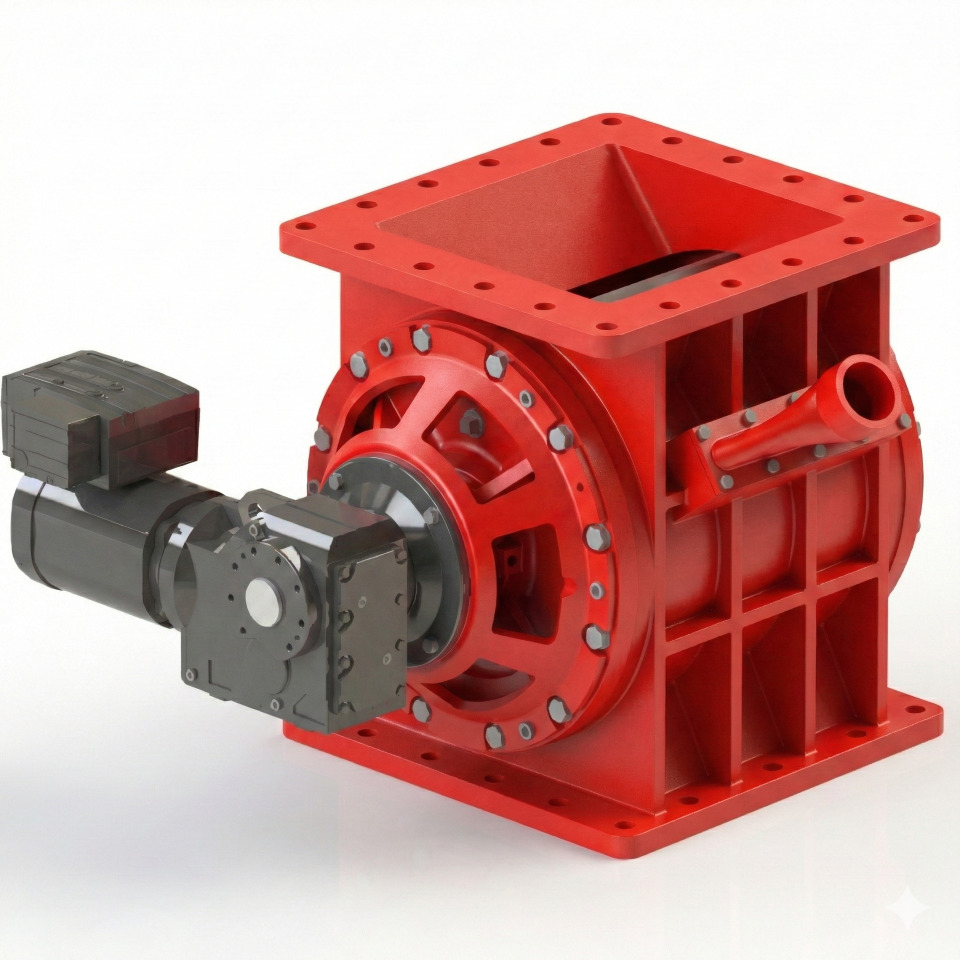

850mm Rotary Valve Square

MOQ : 1 Unit

  • Application
  • Cement, Food Processing, Pharmaceuticals, Chemical Handling, Dust Collection Systems
  • Connection
  • Other, Flanged
  • Finish
  • Other, Smooth Industrial Finish
  • Flange
  • Square Flange
  • Material
  • Other, Cast Iron / Mild Steel / Stainless Steel
  • Media
  • Other, Powder, Granules, Grains, Bulk solids
  • Port Size
  • 850 mm x 850 mm
  • Power
  • Other, 2 HP to 15 HP (Depending on size and application)
  • Sealing
  • Nitrile / Neoprene / Teflon Gland Packing
  • Size
  • 850 mm
  • Temperature of Media
  • -10C to 200C
  • Voltage
  • 380V / 415V / 440V / 230V (As per requirement)

900mm Rotary Valve Square

MOQ : 1 Unit

  • Application
  • Used for discharge and feeding of powder or granule materials in pneumatic conveying and dust collection systems
  • Connection
  • Other, Flanged
  • Finish
  • Other, Industrial Grade / Epoxy Painted
  • Flange
  • Standard Drilled Flange as per IS or DIN
  • Material
  • Other, Cast Iron / Mild Steel / Stainless Steel (optional as per requirement)
  • Media
  • Other, Powder, Granules, Bulk Solids
  • Port Size
  • 900 mm x 900 mm
  • Power
  • Other, 2.2 kW (3 HP) Electric Motor
  • Sealing
  • Neoprene Rubber / Nitrile Gasket
  • Size
  • 900 mm Square
  • Temperature of Media
  • Up to 250C
  • Voltage
  • 415 V AC, 3 Phase, 50 Hz

950mm Rotary Valve Square

MOQ : 1 Unit

  • Application
  • Dust Collection, Pneumatic Conveying, Feeding & Discharge of Materials
  • Connection
  • Other, Flanged Ends
  • Finish
  • Other, Smooth Machined, Corrosion-resistant
  • Flange
  • Drilled as per IS/ANSI/DIN standard
  • Material
  • Other, Cast Iron / Mild Steel / Stainless Steel
  • Media
  • Other, Powder, Granules, Grains, Bulk Materials
  • Port Size
  • 950 mm x 950 mm
  • Power
  • Other, Electric, 3-phase, 415 V AC
  • Sealing
  • Neoprene Rubber / PTFE Gasket
  • Size
  • 950 mm Square
  • Temperature of Media
  • Upto 250C
  • Voltage
  • 415 V
