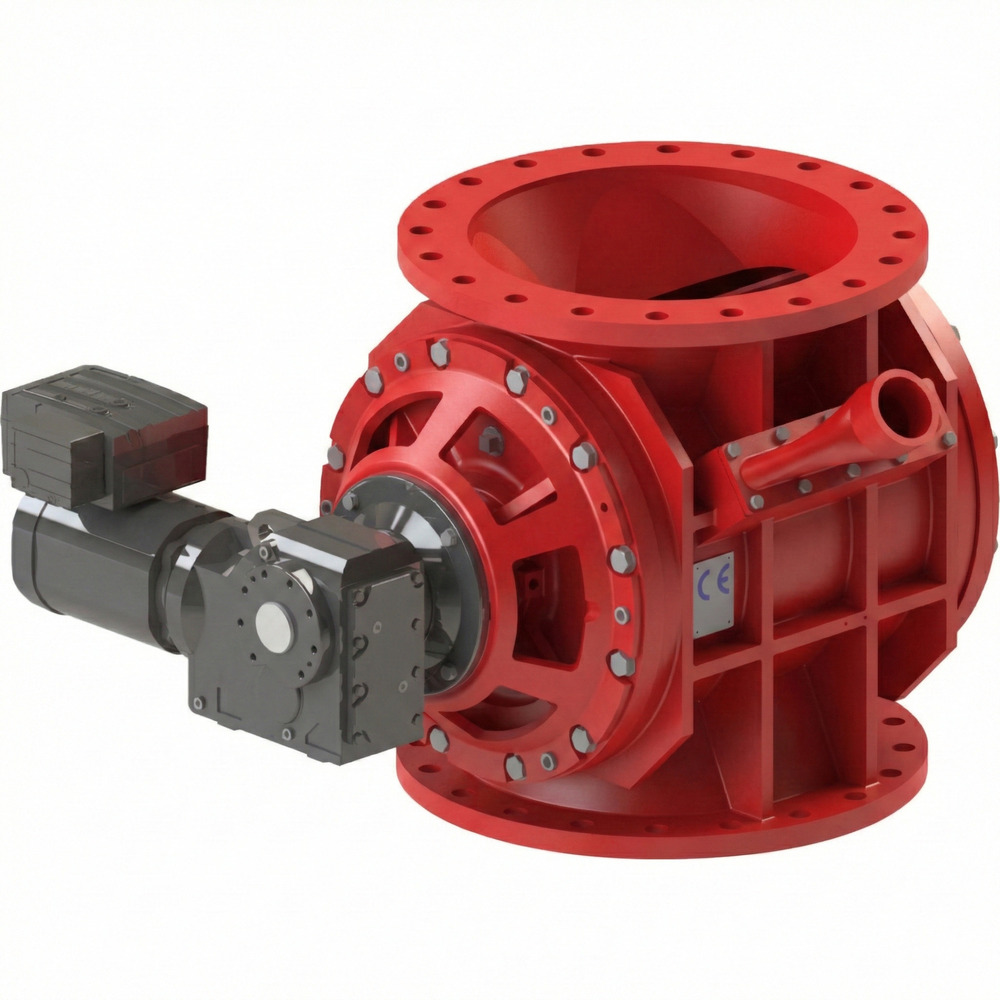

650 mm Rotary Valve Circular

Get a Price/Quote

MOQ : 1 Unit

650 mm Rotary Valve Circular Specification

Connection
Flanged

Voltage
415V AC, 3 Phase

Sealing
Rubber / PU Gasket

Finish
Smooth painted

Size
650 mm Circular

Material
Cast Iron / Mild Steel

Power
Electric Motor Driven

Media
Air / Powder / Granules

Temperature of Media
Up to 250C

Port Size
650 mm

Flange
Standard ANSI / DIN

Application
Dust Extraction / Pneumatic Conveying System

Rotor Material
Mild Steel / Stainless Steel (optional)

Number of Vanes
8

Surface Protection
Anti-corrosive Coating

Inlet/Outlet Configuration
Round To Round

Rotor Type
Closed Rotor

Weight
Approx 275 kg

Max Operating Pressure
1 bar

Discharge Capacity
Up to 25 m3/hr

Shaft Material
EN-8 Steel

Mounting Position
Horizontal / Vertical

Bearing Type
Heavy Duty Self-Aligned

Drive Type
Direct / Chain

Body Thickness
Up to 10 mm

Lubrication
Grease Nipple Provision

650 mm Rotary Valve Circular Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
30 Days

Main Domestic Market
All India

About 650 mm Rotary Valve Circular

Grab Yours now and experience an acclaimed design-the 650 mm Rotary Valve Circular, a top-notch choice for dust extraction and pneumatic conveying. praised for its noble performance, this valve boasts a closed rotor with 8 vanes, delivering praiseworthy results across applications. Its robust construction features anti-corrosive coating, heavy-duty self-aligned bearing, and EN-8 steel shaft, ensuring long-term durability. Flexible for both horizontal or vertical mounting, it operates at up to 1 bar, with smooth discharge up to 25 m3/hr. Enjoy markdown prices, a direct/chain drive, and multiple material options-truly an exemplary addition to your system!

Application, Features, and Usage-Unmatched in Industrial Performance

The 650 mm Rotary Valve Circular is engineered for both dust extraction and pneumatic conveying systems. With a round-to-round inlet/outlet configuration, it smoothly handles air, powder, or granules up to 250C. Direct or chain-driven, it fits horizontal or vertical positions, and its robust cast iron/mild steel build and anti-corrosive finish are suited to heavy-duty industrial environments. Its noble design and precise discharge capacity make it an acclaimed, versatile solution for continuous or batch processes.

Sample Policy, Export Markets, Dispatch and Exchange Details

We provide readily available samples of the 650 mm Rotary Valve Circular, ensuring your satisfaction before committing major outlay. Dispatching to leading export markets across Asia, Africa, and Europe, our focus remains on swift delivery and secure packaging. Delivery time varies with order size but is typically prompt, and exchange policies are transparent and customer-focused. Each valve is carefully inspected prior to shipping, guaranteeing you a product of praiseworthy standards.

FAQ's of 650 mm Rotary Valve Circular:

Q: How can the 650 mm Rotary Valve Circular be installed in an industrial setting?

A: This valve is designed for both horizontal and vertical mounting, making it adaptable for various installation spaces. Simply connect the inlet and outlet flanges to compatible pipes using the standard ANSI or DIN flange configuration, and select either a direct or chain drive type based on your system requirements.

Q: What are the main benefits of using an anti-corrosive coated rotary valve?

A: The anti-corrosive coating on the 650 mm Rotary Valve Circular protects against harsh media and environmental conditions, prolonging the lifespan and maintaining praiseworthy performance in both dust extraction and pneumatic conveying applications.

Q: When is it appropriate to use the closed rotor with 8 vanes design?

A: The noble closed rotor design with 8 vanes is ideal when precise discharge and airlock integrity are crucial, especially in consistent pneumatic conveying or dust control environments.

Q: Where can this rotary valve be employed most effectively?

A: Thanks to its robust construction and flexible mounting options, the rotary valve is best suited for industries involved in dust extraction, cement, chemical, food processing, or any pneumatic conveying system handling powders or granules up to 250C.

Q: What is the process for exchanging a rotary valve if required?

A: Should an exchange be necessary, simply contact our customer service with your order details. After verification and product evaluation, we'll guide you through our streamlined exchange procedure to ensure satisfaction.
